Plastic Recycling Machine
Your Professional Plastic Recycling Machine Manufacturer!
Zhangjiagang Plastech Machinery Technology Co., Ltd. is located in Zhangjiagang City, It is a professional manufacturer of plastic machinery that integrates design, research and development, and production; We mainly produce kinds of plastic crushing washing, pelletizing recycling machines, as well as kind of plastic sheet, board, and profiles pipes extrusion machines.
Why Choose Us
Rich Experience
Our company has over 10 years of experience in plastic machine manufacturing.
End-To-End Services
We have always adhered to the concept of quality is the most important, service is the top priority.
Excellent Technology
Technological innovation, continuously improve our own strength, to provide more comprehensive and efficient solutions for customers.
Advanced Equipment
We have a complete range of machining equipment and a very mature production process. The equipment developed based on the latest technology has higher efficiency, better performance and stronger reliability.
Technical Parameter
|
Type |
PE500 |
PE1000 |
PE2000 |
PE3000 |
|
|
Capacity(kg/h) |
500 |
1000 |
2000 |
3000 |
|
|
Energy consumption(KWH) |
119 |
165 |
209 |
294 |
|
|
Installation power(KWH) |
183 |
254 |
322 |
452 |
|
|
Chain conveyor |
Chain plate width(MM) |
800 |
1000 |
1400 |
1600 |
|
Drive motor (KW) |
2.2 |
3 |
4 |
5.5 |
|
|
Shredder |
Grind chamber(mm) |
840*1570 |
1120*1570 |
1400*1570 |
1960*1570 |
|
Motor power(KW) |
37 |
55 |
75 |
55*2 |
|
|
Crusher |
Grind chamber(mm) |
500*700 |
700*1000 |
700*1200 |
800*1200 |
|
Motor power(KW) |
55 |
75 |
90 |
132 |
|
|
Belt conveyor |
Belt width(mm) |
600 |
800 |
800 |
1000 |
|
Motor power(KW) |
2.2 |
3 |
3 |
3 |
|
|
Washing tank |
Dimension of tank(mm) |
5000mm×1200mm |
6000mm×1600mm |
8000mm×1800mm |
10000mm×1800mm |
|
No. of thumb-wheel(pcs) |
5 |
6 |
8 |
5 |
|
|
Screw conveyor |
Screw diameter(mm) |
250 |
300 |
400 |
500 |
|
Motor power(KW) |
2.2 |
3 |
4 |
5.5 |
|
|
Friction washer |
Screw diameter(mm) |
300 |
400 |
450 |
560 |
|
Motor power(KW) |
11 |
15 |
22 |
30 |
|
|
Centrifugal dryer |
Rotor diameter(mm) |
460 |
500 |
550 |
650 |
|
Motor power(KW) |
15 |
22 |
30 |
45 |
|
|
Hot air pipe dryer |
Pipe diameter(mm) |
133 |
159 |
169 |
219 |
|
Heating power(KW) |
36 |
36 |
48 |
55 |
|
Advantages of Plastic Recycling Machine
Increased Recycling Efficiency: Plastic recycling machines streamline the recycling process, leading to faster and more accurate recycling of plastic materials.
Maximized Material Recovery Rates: By accurately sorting and processing plastic materials, these machines maximize the recovery of valuable materials, reducing waste and conserving resources.
Reduction in Manual Labor: Automation of the recycling process reduces the need for manual labor, minimizing labor costs and improving workplace safety.
Improved Quality of Recycled Materials: The precise sorting and processing capabilities of these machines result in higher-quality recycled materials, suitable for a wide range of applications.
Environmental Benefits: Plastic recycling machines contribute to environmental sustainability by reducing energy consumption, greenhouse gas emissions, and environmental pollution associated with plastic production and disposal.
Flexibility to Recycle Various Plastic Types: Plastic recycling machines are engineered to handle a wide range of plastic materials—like LDPE, HDPE, PET, PP, ABS, and PVC. This flexibility allows businesses to process different types of plastic scrap using a single machine setup.
Packaging industry: In the packaging industry, plastic recycling machines are used to recycle plastic packaging materials, such as bottles, containers, and films. By recycling these materials, companies can reduce their environmental impact and save on raw material costs.
Automotive industry: In the automotive industry, plastic recycling machines are used to recycle plastic parts from end-of-life vehicles. These parts can include bumpers, dashboards, and interior trim components. By recycling these parts, automotive manufacturers can reduce their waste and save on raw material costs.
Construction industry
In the construction industry, plastic recycling machines are used to recycle plastic waste materials, such as pipes, insulation, and roofing materials. By recycling these materials, construction companies can reduce their environmental impact and save on raw material costs.
Consumer goods industry
In the consumer goods industry, plastic recycling machines are used to recycle plastic products, such as toys, electronics, and household items. By recycling these products, companies can reduce their environmental impact and save on raw material costs.
Textile industry
In the textile industry, plastic recycling machines are used to recycle plastics that are spun into fibers for use in carpets, clothing, and interior decoration, promoting sustainable fashion and interior design.
Main Types of Plastic Recycling Machines
Plastic recycling lines can be categorized based on function, including crushers, washing lines, and pelletizing machines. Each machine handles a different stage in the recycling process and is suitable for processing different forms or types of plastic.
|
Machine Type |
Main Function |
Applicable Plastics |
|
Plastic Crusher & Shredder |
Crushers are used to reduce the size of large plastic waste by shredding or cutting it into smaller flakes, making it easier for downstream processing. |
Rigid plastics, soft plastics, plastic products. |
|
Plastic Washing Line |
A typical plastic washing line consists of multiple units: separation, pre-washing, friction washing, rinsing, dewatering, and drying. These steps ensure contaminants are removed and materials are prepared for further use. |
PET, PP, PE, HDPE. |
|

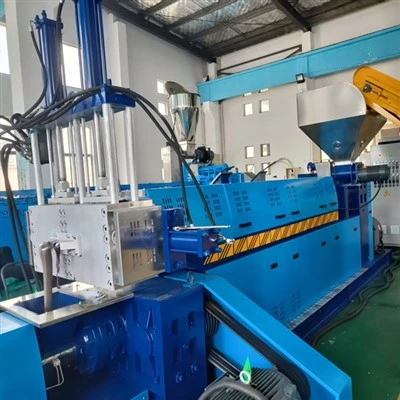

Plastic Pelletizing Machine |
Pelletizing machines (often part of a complete pelletizing line) are centered around an extruder that melts shredded plastic through heating. The molten plastic is extruded into continuous strands, which are then cooled and cut into uniform pellets by a pelletizer (either strand-cut or underwater system). |
Soft plastics, PE film, PET bottles. |
Collection: Plastic bottles are collected from various sources, including households, public spaces, and recycling centers. These bottles are then transported to recycling facilities equipped with plastic bottle recycling machines.
Sorting: The first step in the recycling process is sorting. Plastic bottle recycling machines use optical sensors and conveyor belts to separate different types of plastic bottles based on their composition and color. This automated sorting process ensures that only suitable bottles are selected for recycling.
Crushing: Once the bottles are sorted, they are crushed into small pieces using powerful crushers. This process reduces the volume of the bottles, making them easier to handle and transport.
Cleaning: The crushed plastic pieces are thoroughly cleaned to remove any contaminants, such as labels, caps, and dirt. This ensures that the recycled plastic is of high quality and can be used for various purposes.
Melting and Reprocessing: The cleaned plastic pieces are then melted and reprocessed into small pellets or flakes. These pellets can be used as raw materials for manufacturing new plastic products, such as bottles, containers, and even clothing.
Packaging and delivery
01
Package
We use strong seaworthy wooden crates, wooden pallets, waterproof polyethylene film, etc.
02
Transportation
Sea transportation includes trains and railways, and air transportation ports include Shanghai Port.
03
Delivery Time
Normally it takes 10-20 days if the goods are in stock. Or it is 35-60 days if the goods are not in stock, it is according to quantity.
